AMFG Engage Brush Grapple

AMFG Engage Brush Grapple

Sold out
Regular price $5,595.00
Regular price $6,050.00 Sale price $5,595.00

LIMITED TIME FREE SHIPPING!

Shipping calculated at checkout.

SKU: AMFG-BG84

Categories: Amarekan MFG Grapples

need help? (512) 649-6040

View full details

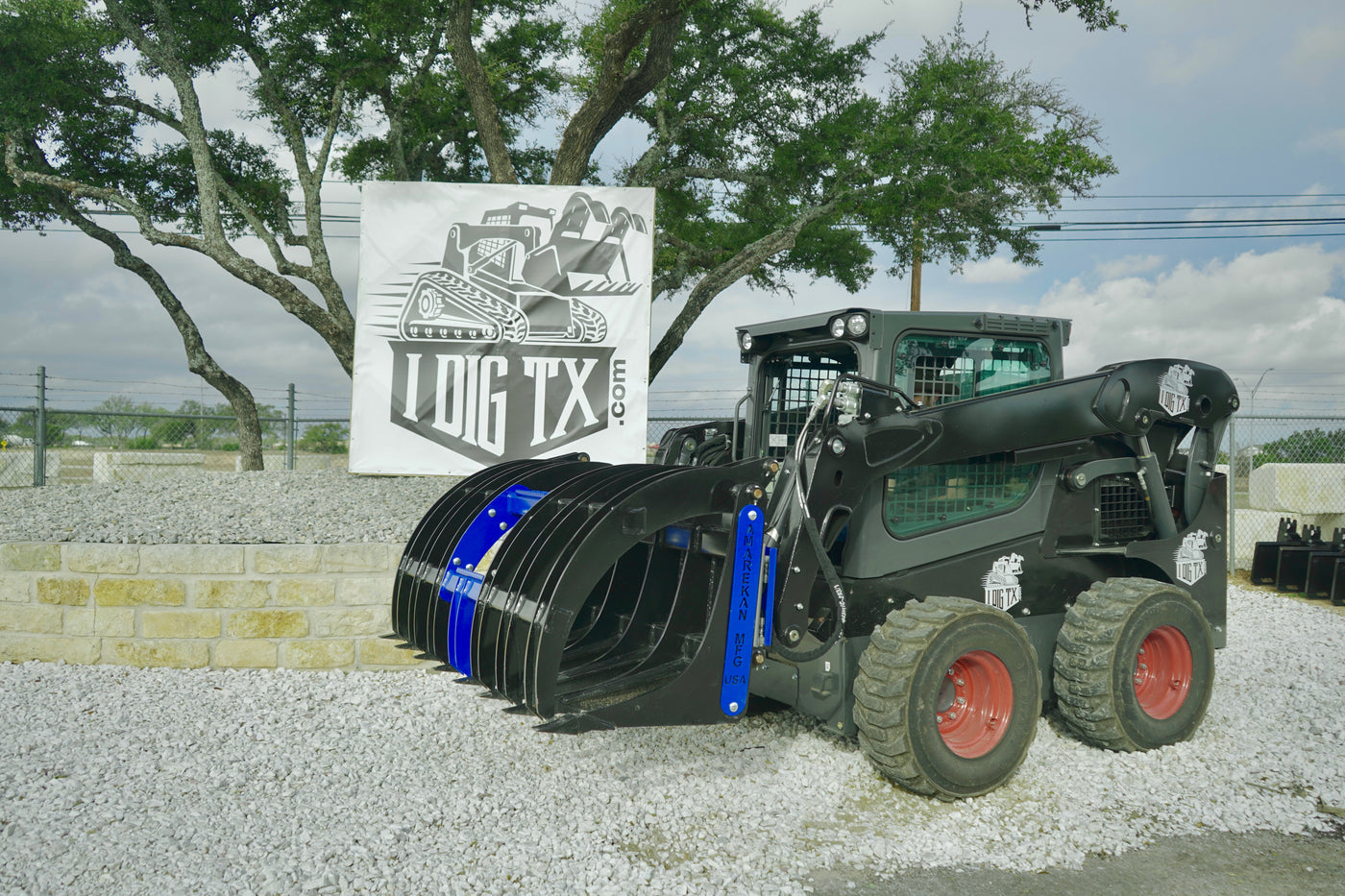

The Amarekan AMFG “Engage” brush grapples are built exclusively for I Dig Texas! American made at our own manufacturing plant down to the precision machined components on the hydraulic cylinders.  Amarekan Mfg. builds their commercial grade brush grapples one part at a time from USA sourced steel! …We are the guys that do it here in the USA like back in the good ol’ day!

The Engage includes a bolt-in “bridge” that allows you to run independent grapple tines or bolt together for a single “clam shell” type grapple!

*** Monsterous 36" depth with a 57-58" opening.  Almost a foot more opening height than our competitors! ***

Specs on 72” & 84” engage grapples – (recommended 75-100 HP CTL & tire machines!)

  • 10” spacing between bottom tines
  • 1/2” think bottom tines
  • ½” thick gussets in between bottom tines
  • Replaceable teeth on each bottom tine
  • 1/2” thick upper grapple tines
  • ¼” wall 3x3” connecting tubes on upper grapple tines
  • 3/8” 4x4 square tube for main frame
  • 1 ¼ greaseable pins and bushing for grapple tines and cylinders

72" - 1,265 lbs.

84" - 1,350 lbs.
