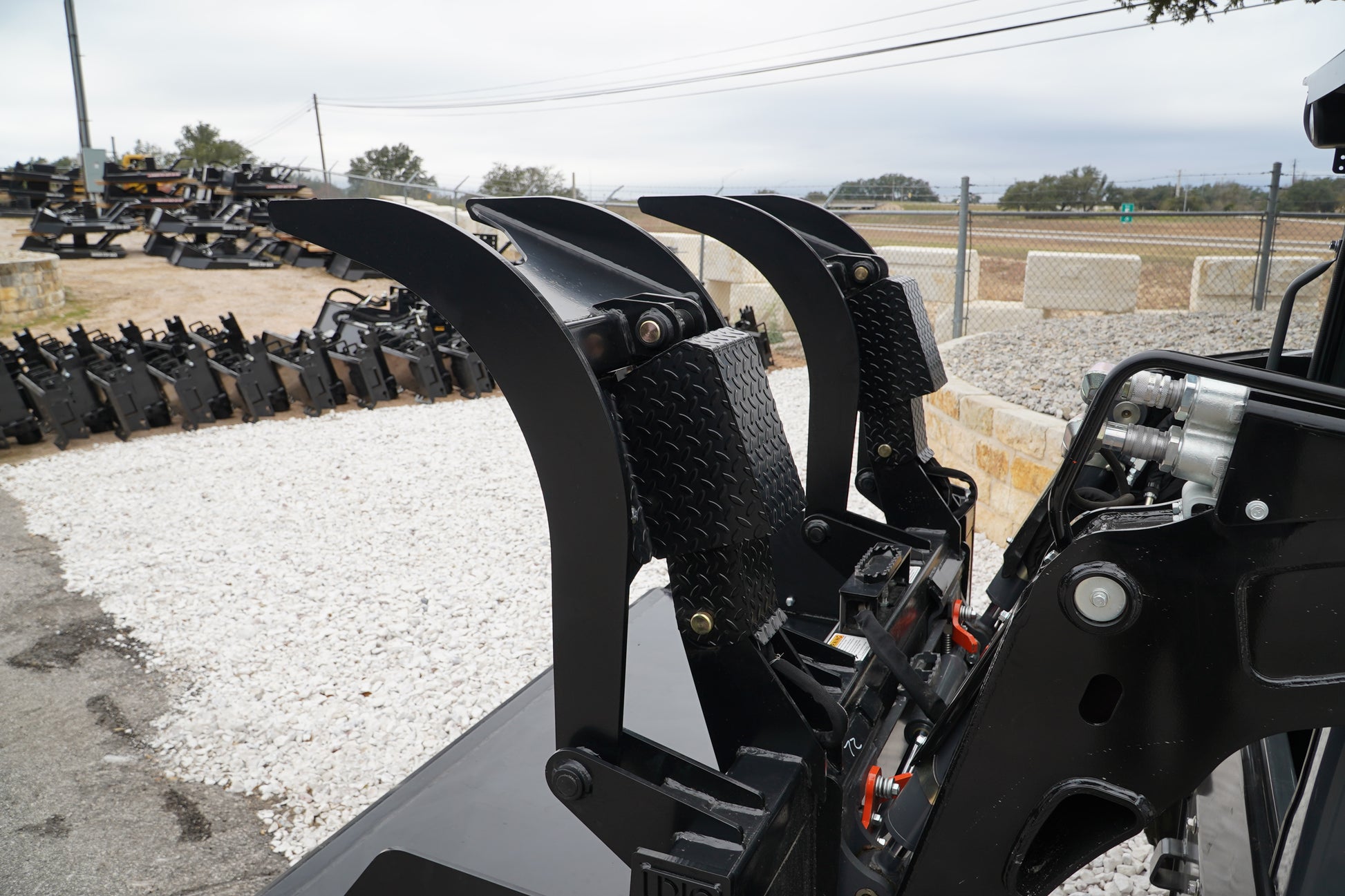

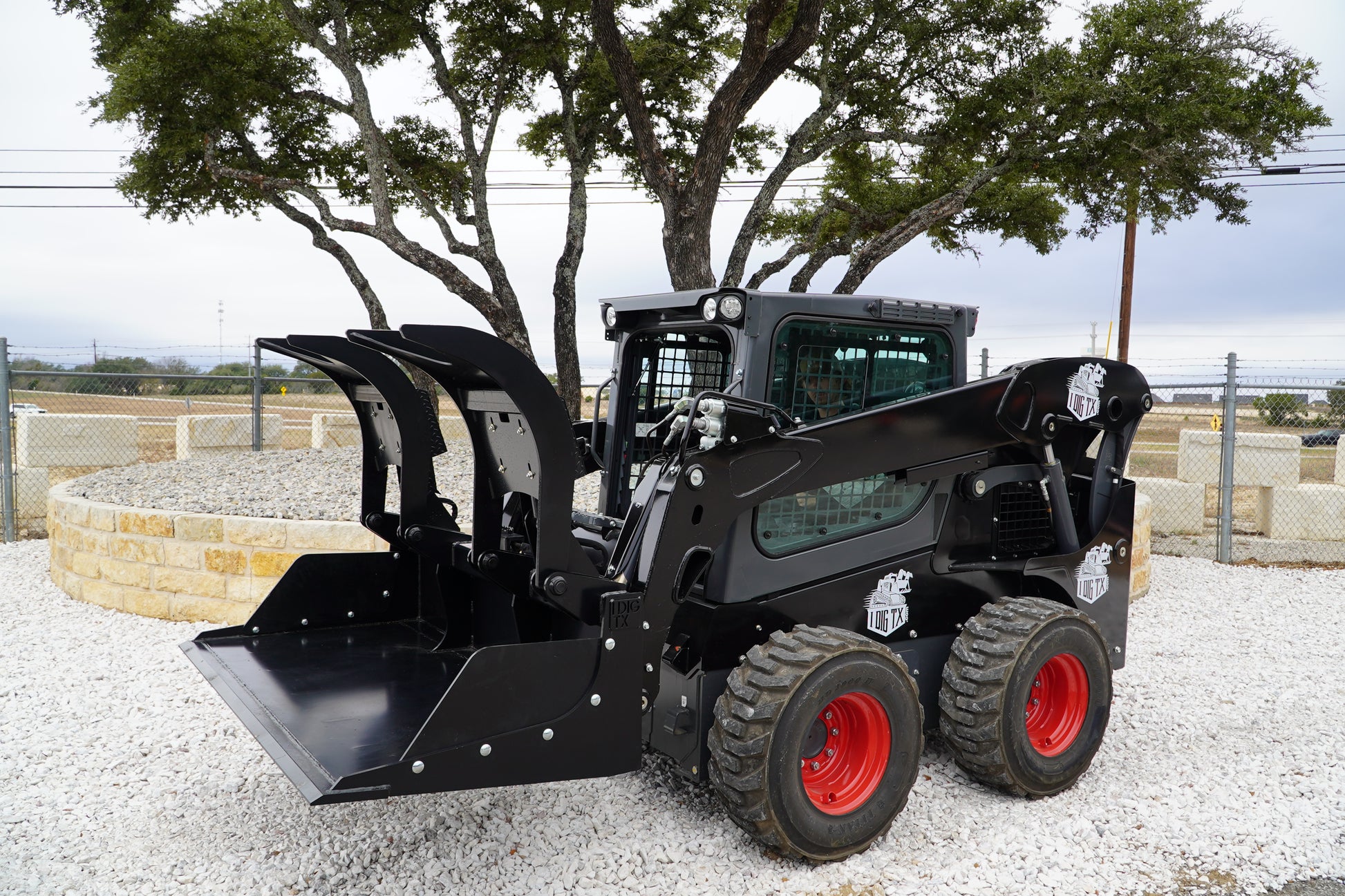

IDT Grapzilla Flat Bottom Grapple

IDT Grapzilla Flat Bottom Grapple

Sold out
Regular price $4,595.00
Regular price $5,055.00 Sale price $4,595.00

LIMITED TIME FREE SHIPPING!

Shipping calculated at checkout.

SKU: IDT-FBGRPZ72

Categories: Grapples

need help? (512) 649-6040

View full details

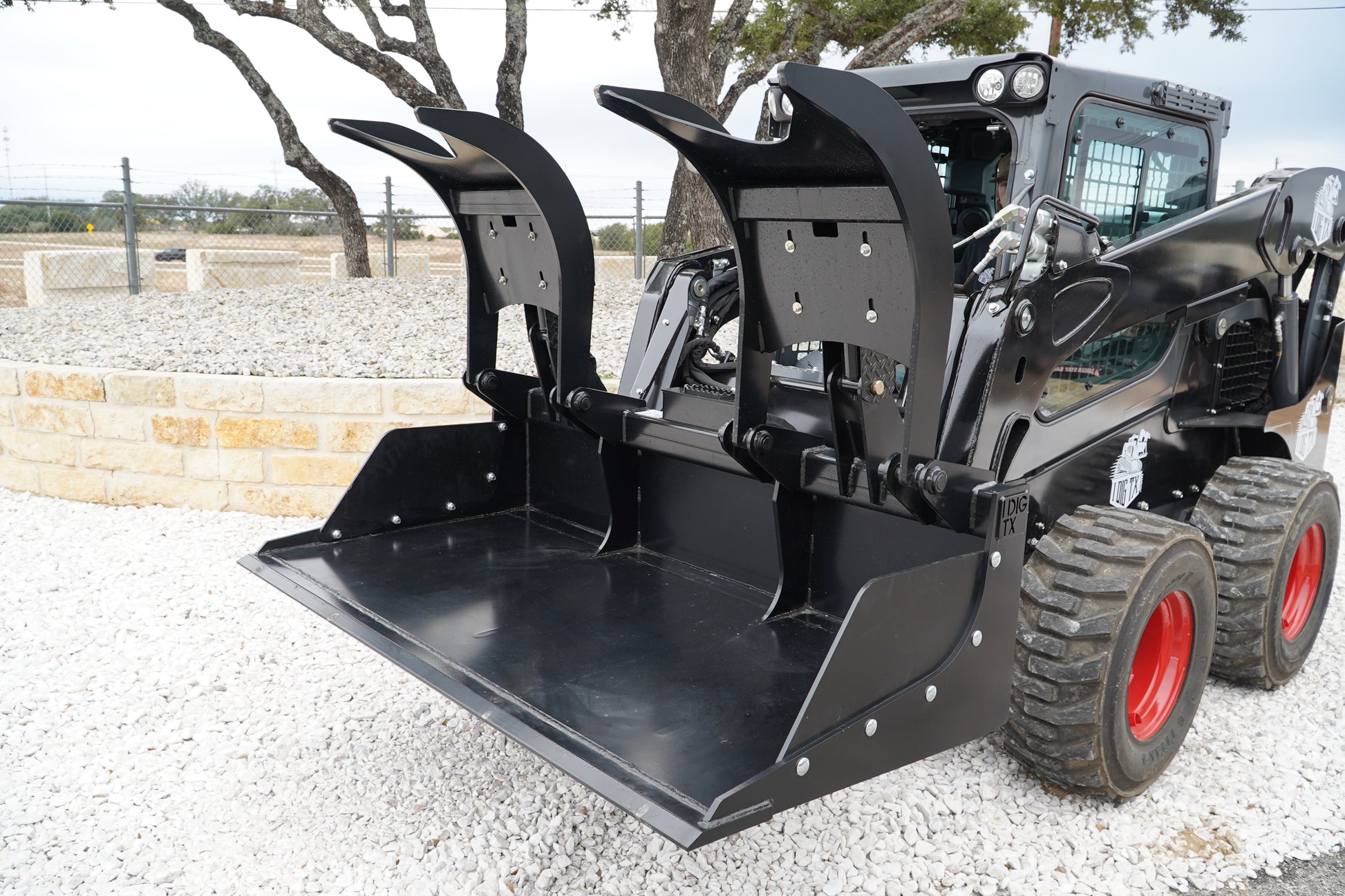

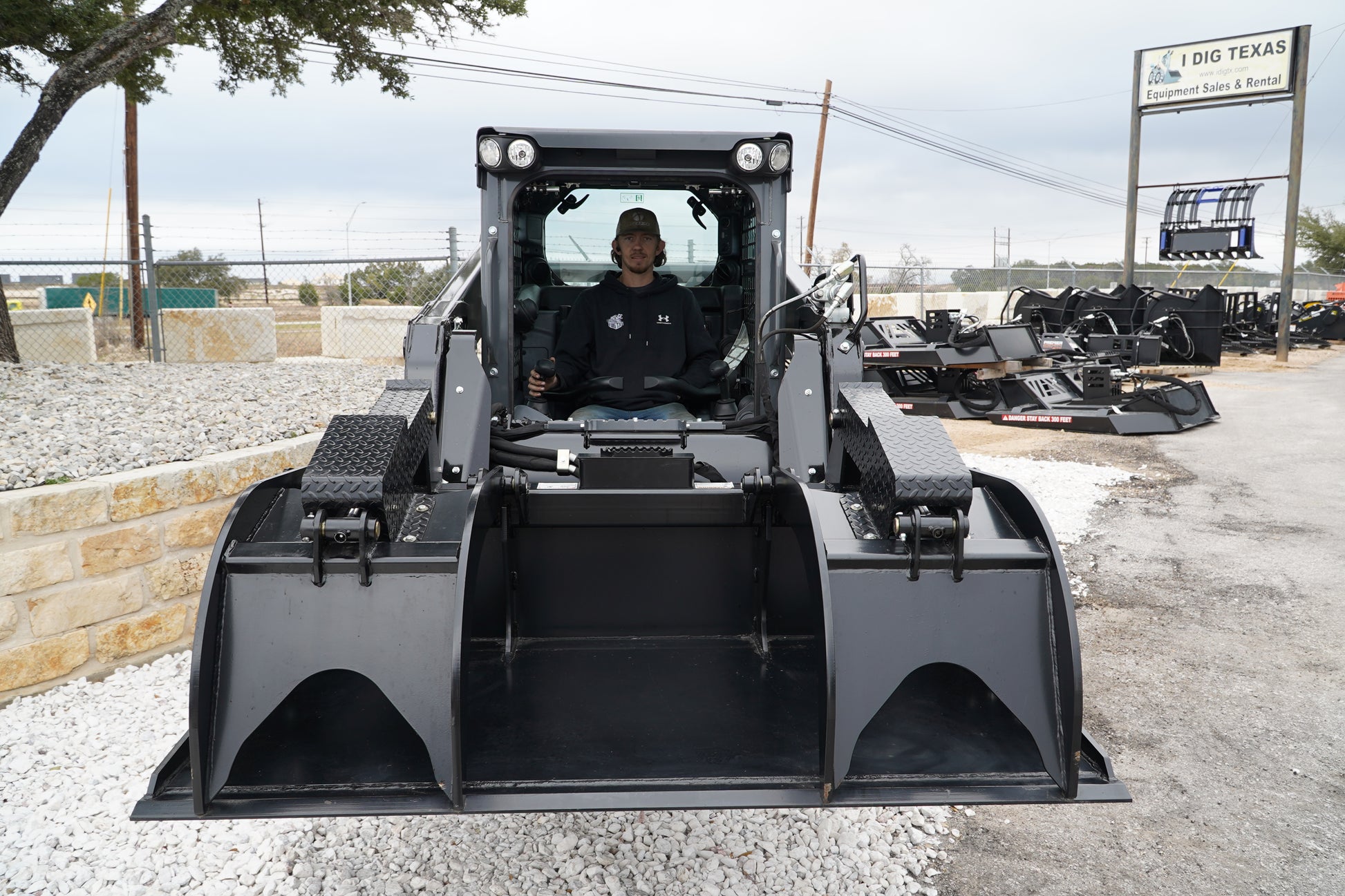

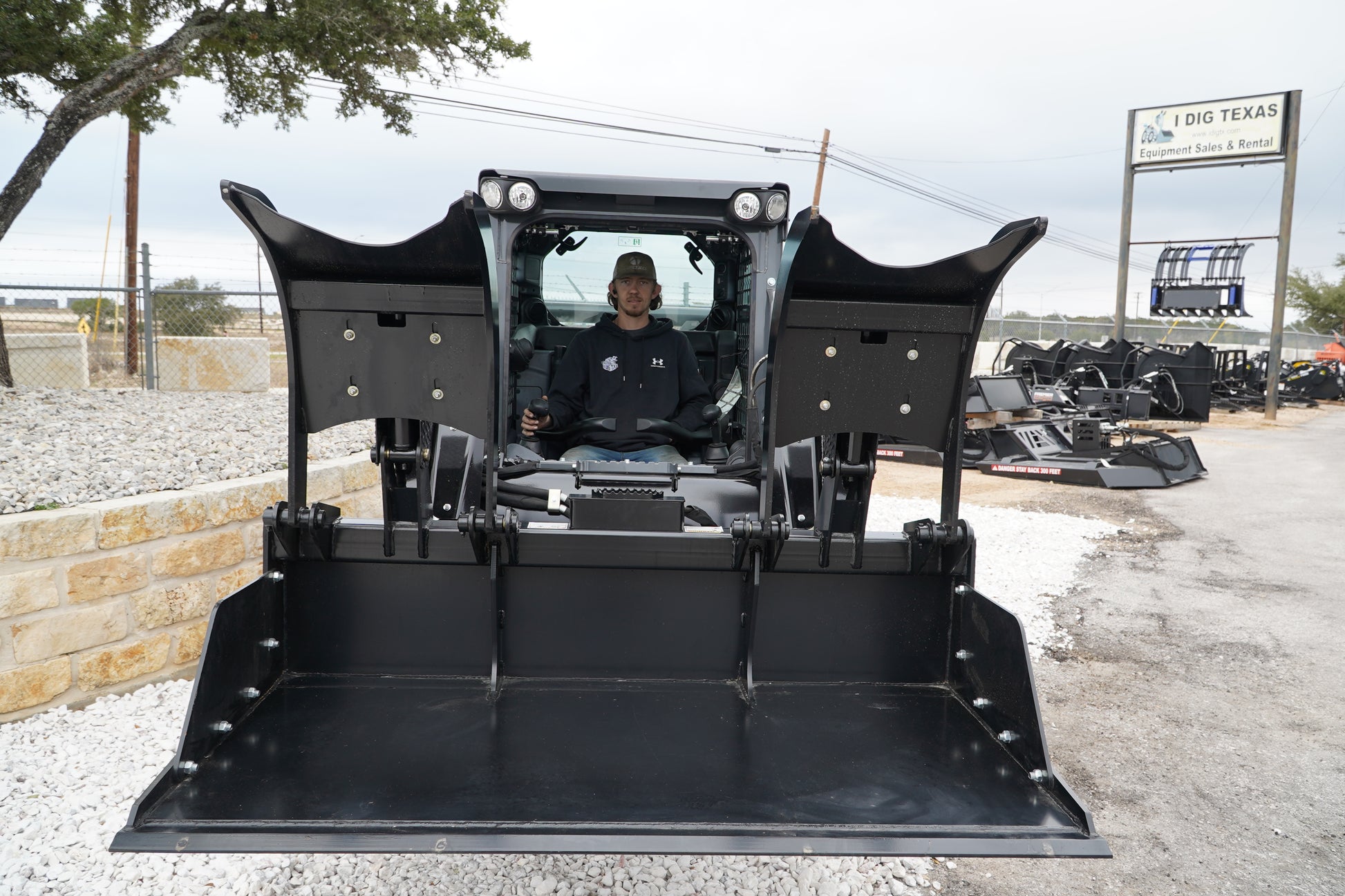

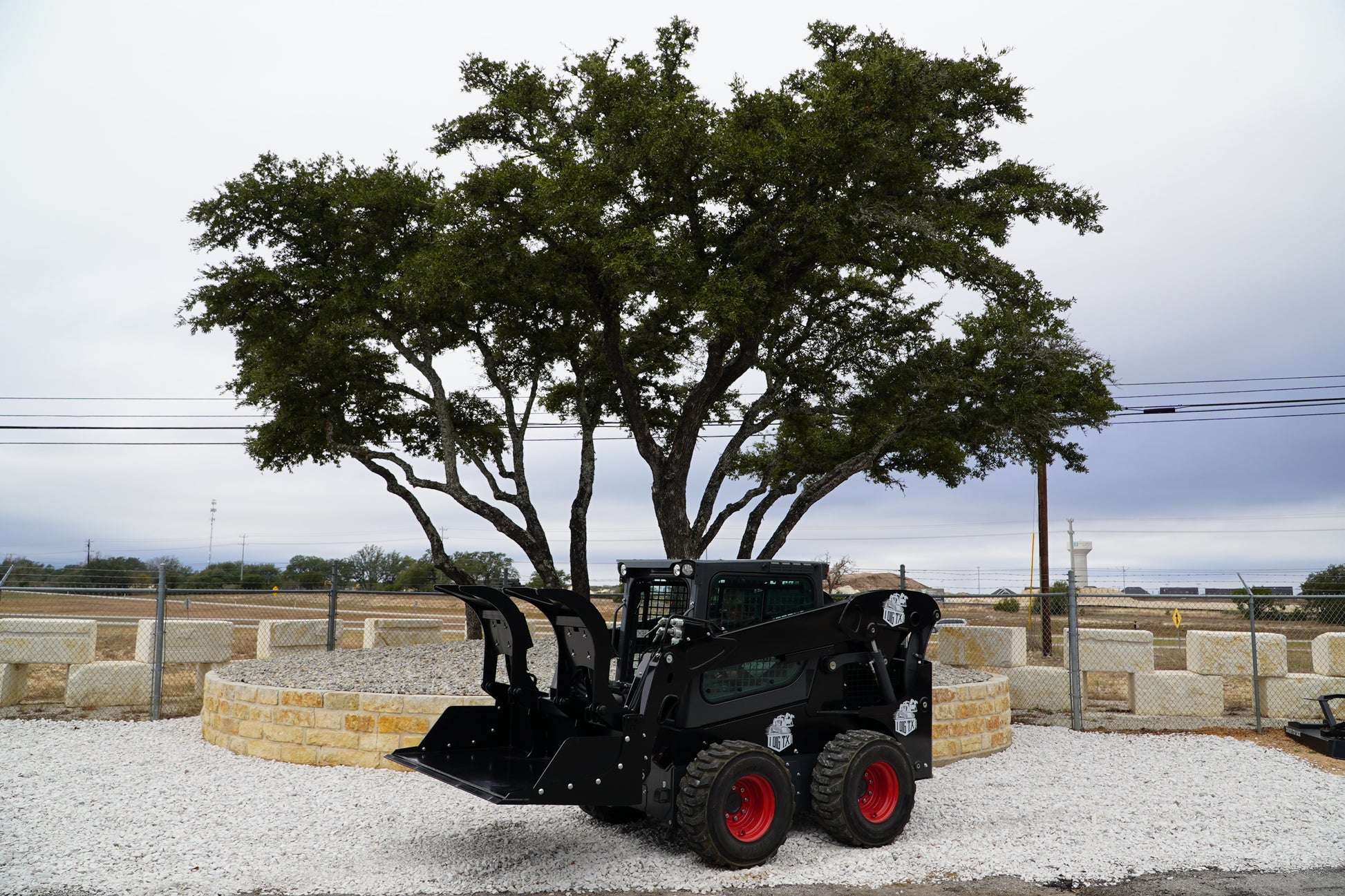

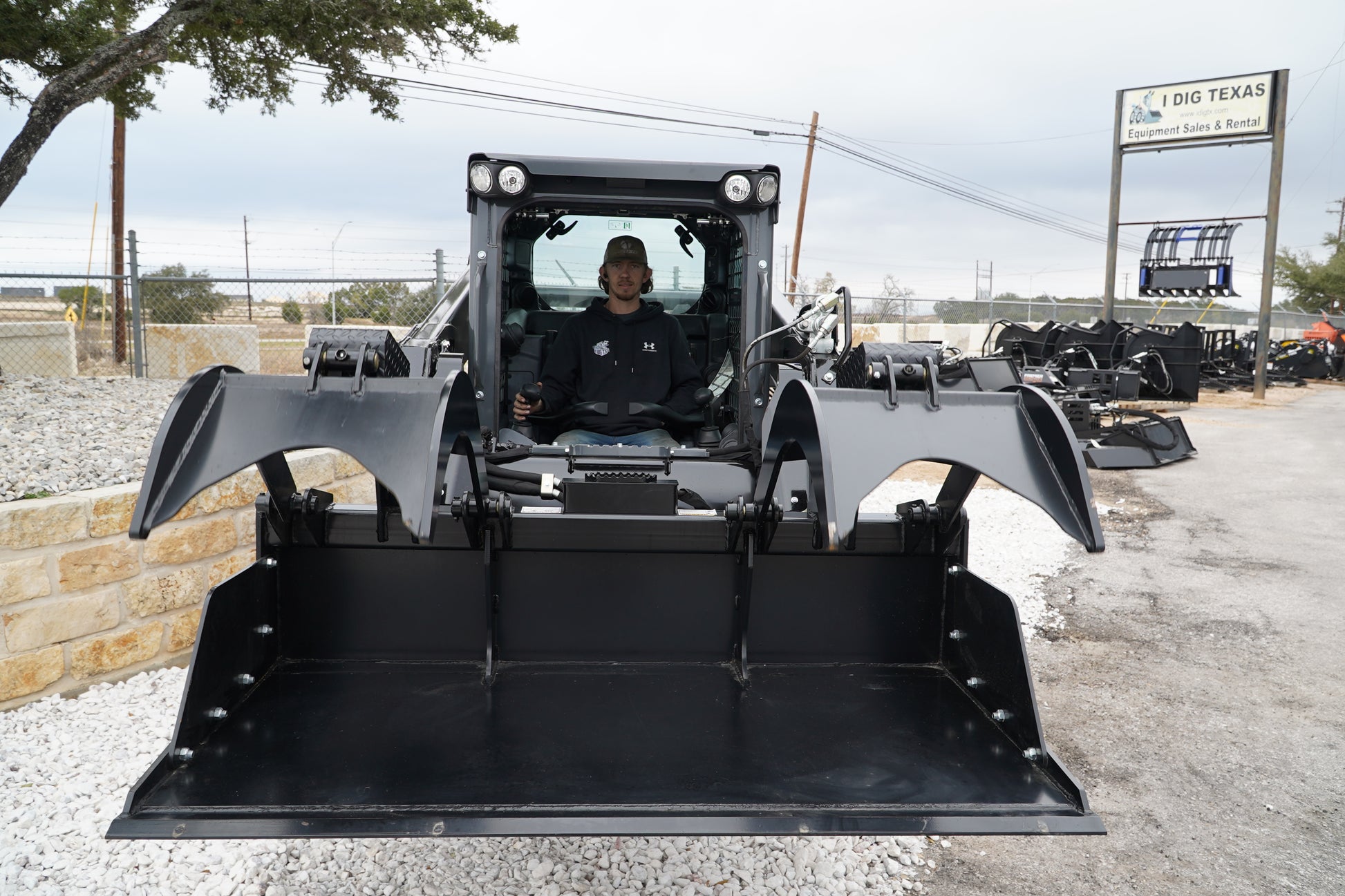

IDT GrapZilla Construction Grapple

The GrapZilla series is for high horsepower (75+ HP) machines and contractors looking to do daily construction demo and clean-up.

This bucket ain't for no sissies.

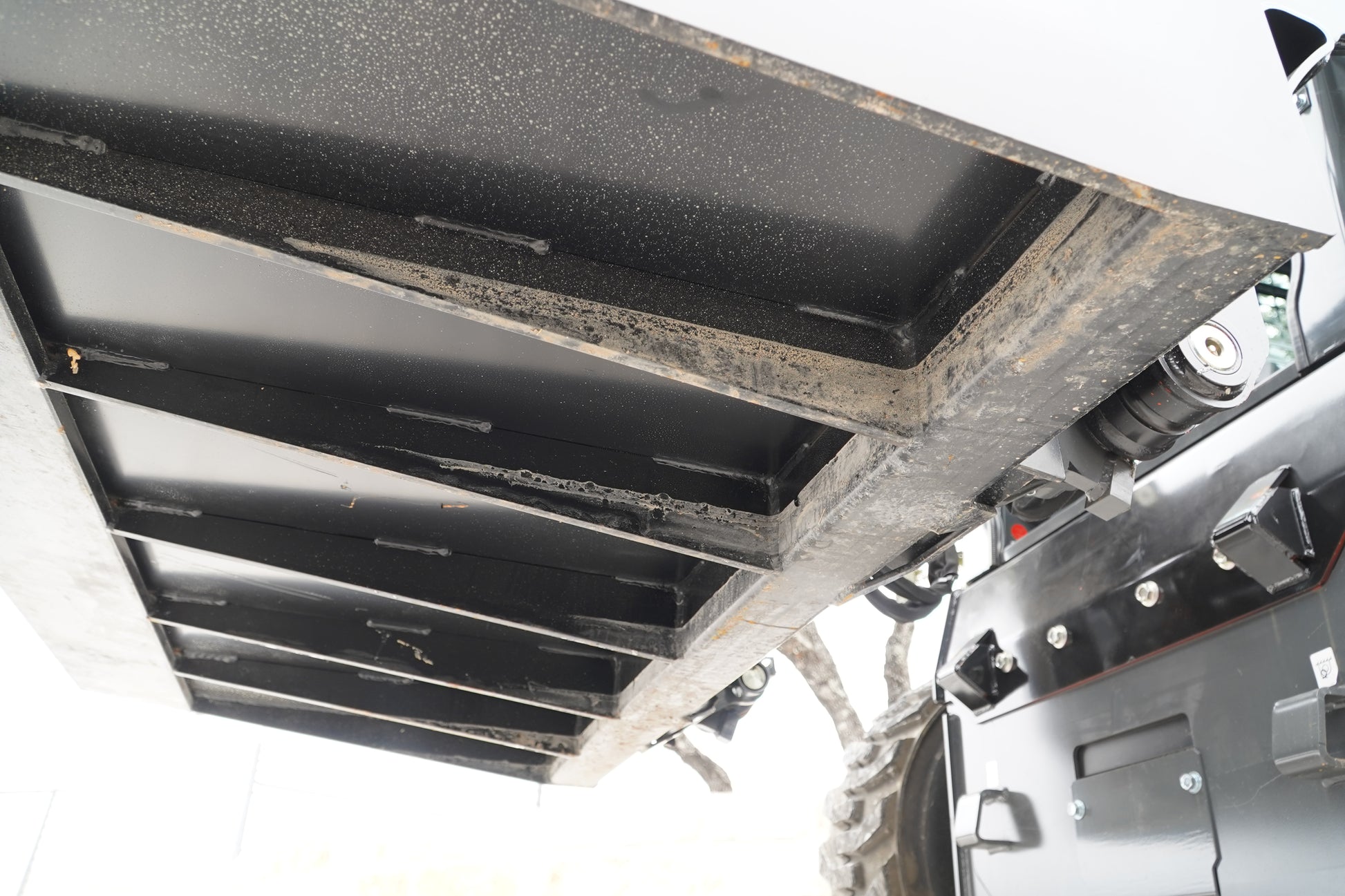

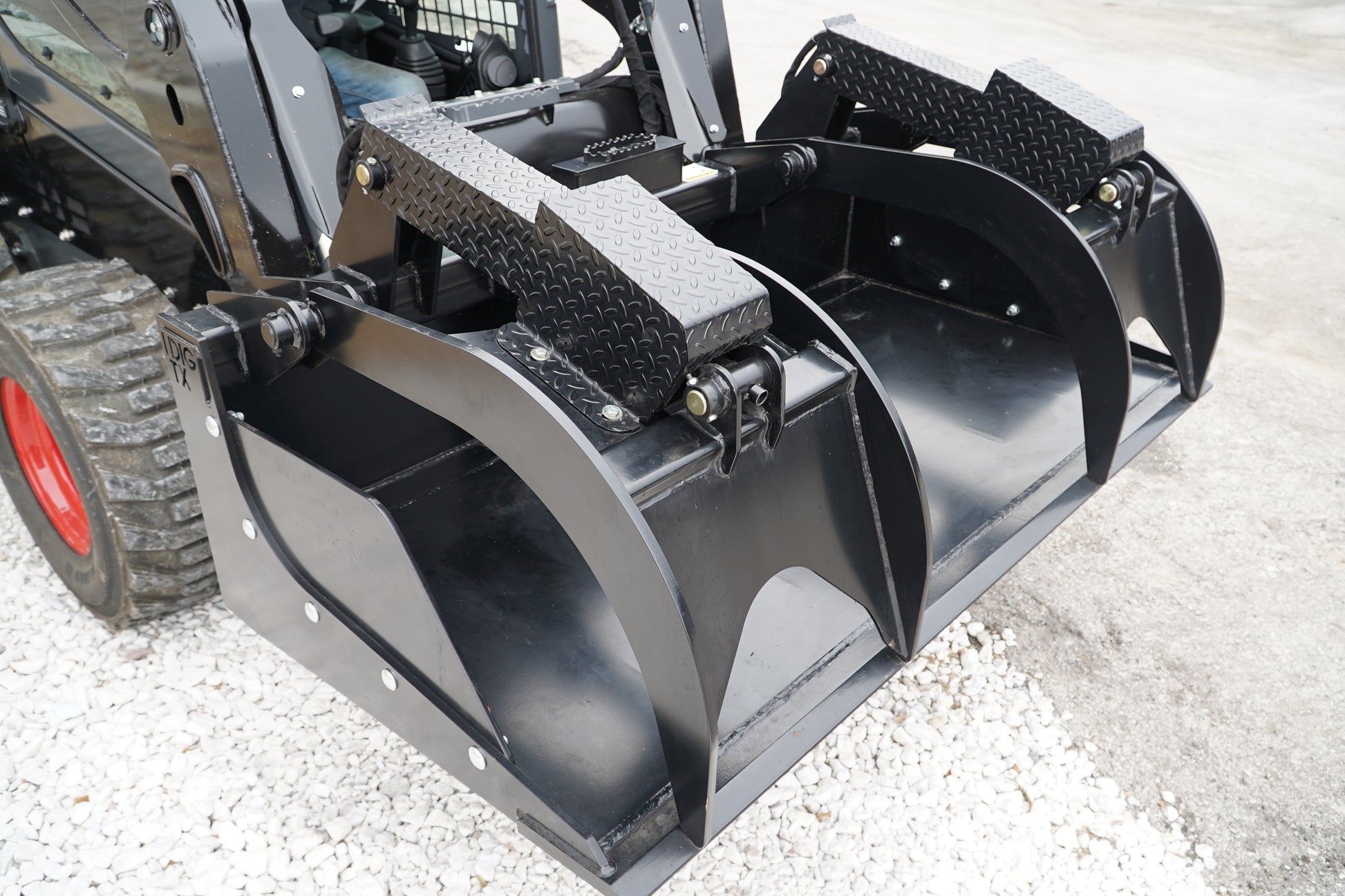

Constructed with a 1" x 8" cutting edge, 1/2" dual gusset braces running most of the depth of the bucket, 1/2" bucket sides, 5/8" top tine side walls, and 2" x 10" stroke u.S. Of a.  Hydraulic cylinders putting the squeeze on at 4500 psi... You can rest assured your job will get done with no downtime. The GrapZilla series ups the anti  to a 4" x 4" (hd is 3" x 3") square tube running the rear upper horizontal brace position and boasts 1/4" plates on the bottom and the back (HD is 3/16").  Comes with 1 1/4 inch pins with counter sunk grease fittings and bushings on both sides on all hinge points.  The GrapZilla series comes with rod covers in addition to cylinder covers (HD comes with cylinder covers only).

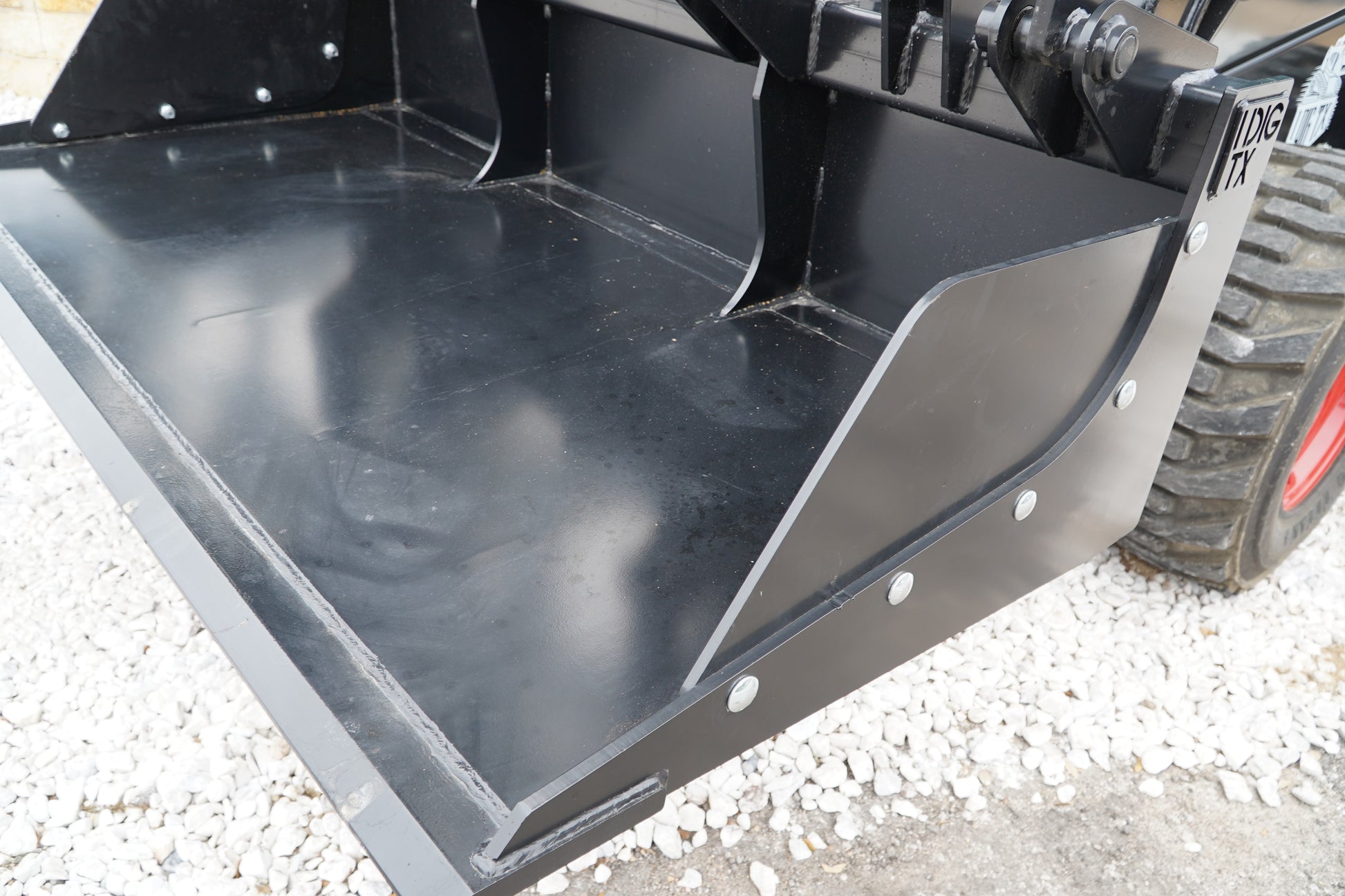

The GrapZilla utilizes bolt on side plates.  These side plates can be conveniently removed to grab longer materials (brush, debris, etc) deeper into the throat of the grapple's bucket.
